Descrizione

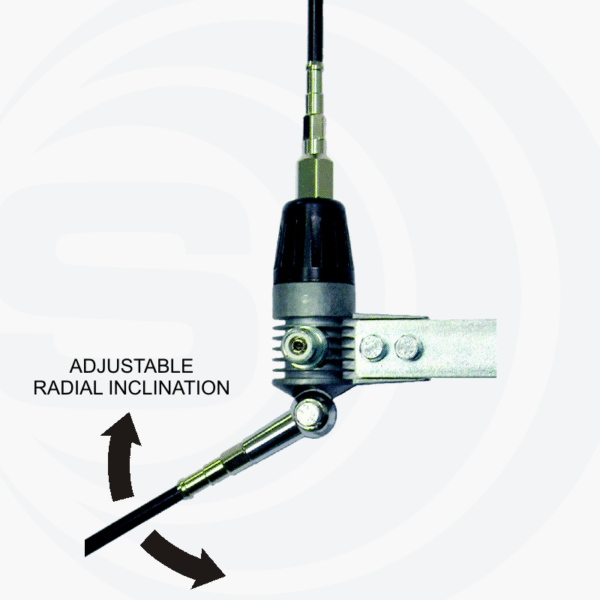

| Type: | 1/4 λ ground plane boomerang |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 26.8 … 27.6 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 0 dBd, 2.15 dBi |
| Bandwidth: | ≥ 800KHz @ SWR ≤ 2 |
| Max Power: | 300 Watts (CW) continuous 900 Watts (CW) short time |
| Connector: | UHF-female (SO-239) |
MECHANICAL DATA: |
|
|---|---|
| Materials: | Aluminium, Copper, Galvanized steel, Fiberglass, Nylon |
| Height (approx): |
BOOMERANG W:
2180 mm
|
| Weight (approx): |
BOOMERANG W:
750 gr
|
| Mounting type: | On-Mast |
